Buy Drivetrain Components wholesale from the manufacturer UNIO Page 15

picture of Front right drive shaft assembly from UNIO

Front right drive shaft assembly Front right drive shaft assembly BMW X5 (E53) 99- (MT/AT) Art: CVJ-10084

Article: CVJ-10084

Fitting Position Front Axle Right
External Toothing wheel side 30
External Toothing differential side 27
Internal Toothing differential side, conn. to conn. shaft 26
Internal Toothing wheel side 27
Sealing Ring Diameter [mm] 64.8
Length [mm] 970
Diameter 2 [mm] 82.5
Joint Diameter [mm] 98
Thread Size M27x1,5
EAN 4657814483091

Front right drive shaft assembly Front right drive shaft assembly Renault Laguna II 01- (MT) Art: CVJ-10109

Article: CVJ-10109

Fitting Position Front Axle Right
External Toothing wheel side 27
External Toothing differential side 23
Internal Toothing differential side, conn. to conn. shaft 28
Internal Toothing wheel side 32
Sealing Ring Diameter [mm] 56.5
Length [mm] 802
Diameter 2 [mm] 72
Joint Diameter [mm] 87
Thread Size M22x1,5
EAN 4657814483343

Front right drive shaft assembly Front right drive shaft assembly VW Passat B5 96-, Audi A4 I,II 94- (MT) Art: CVJ-10111

Article: CVJ-10111

Fitting Position Front Axle Right
External Toothing wheel side 33
Internal Toothing differential side, conn. to conn. shaft 33
Internal Toothing wheel side 30
Sealing Ring Diameter [mm] 53
Number of Teeth, ABS ring 45
Length [mm] 636
Diameter 2 [mm] 100
Joint Diameter [mm] 88
ABS-Ring Diameter [mm] 80.7
Thread Size M14x1,5
EAN 4657814483367

Front right drive shaft assembly Front right drive shaft assembly Kia Cerato 04-, Shuma II 01- (MT/AT) Art: CVJ-10025

Article: CVJ-10025

Fitting Position Front Axle Right
External Toothing wheel side 28
External Toothing differential side 28
Internal Toothing differential side, conn. to conn. shaft 22
Internal Toothing wheel side 22
Sealing Ring Diameter [mm] 56
Number of Teeth, ABS ring 46
Length [mm] 574
Diameter 2 [mm] 77
Joint Diameter [mm] 78.5
ABS-Ring Diameter [mm] 94
Thread Size M22x1,5
EAN 4657814482506

Front right drive shaft assembly Front right drive shaft assembly Mazda 3 II 08- (MT) Art: CVJ-10035

Article: CVJ-10035

Fitting Position Front Axle Right
External Toothing wheel side 28
External Toothing differential side 28
Internal Toothing differential side, conn. to conn. shaft 22
Internal Toothing wheel side 23
Sealing Ring Diameter [mm] 58.6
Length [mm] 597
Diameter 2 [mm] 76.3
Joint Diameter [mm] 82
Thread Size M22x1,5
EAN 4657814482605

Front right drive shaft assembly Front right drive shaft assembly VW Passat B5 96-, Audi A4 95-, Skoda Superb (3U4) 01- (MT) Art: CVJ-10125

Article: CVJ-10125

Fitting Position Front Axle Right
External Toothing wheel side 33
Internal Toothing differential side, conn. to conn. shaft 34
Internal Toothing wheel side 30
Sealing Ring Diameter [mm] 53
Number of Teeth, ABS ring 45
Length [mm] 622
Diameter 2 [mm] 130
Joint Diameter [mm] 88
ABS-Ring Diameter [mm] 81
Thread Size M14x1,5
EAN 4657814483503

Front right drive shaft assembly Front right drive shaft assembly Mitsubishi Pajero II 90-, Pajero Sport 98-, L200 III 96- (MT/AT) Art: CVJ-10094

Article: CVJ-10094

Fitting Position Front Axle Right
External Toothing wheel side 28
Internal Toothing differential side, conn. to conn. shaft 26
Internal Toothing wheel side 25
Sealing Ring Diameter [mm] 56
Length [mm] 538
Diameter 2 [mm] 132
Joint Diameter [mm] 90
EAN 4657814483190

Front right drive shaft assembly Front right drive shaft assembly Chevrolet Aveo (T200/250/255) 03-, Daewoo Kalos (KLAS) 03- (AT) Art: CVJ-10127

Article: CVJ-10127

Fitting Position Front Axle Right
External Toothing wheel side 22
External Toothing differential side 22
Internal Toothing differential side, conn. to conn. shaft 29
Internal Toothing wheel side 22
Sealing Ring Diameter [mm] 52
Number of Teeth, ABS ring 48
Length [mm] 930
Diameter 2 [mm] 88.5
Joint Diameter [mm] 81
ABS-Ring Diameter [mm] 84
Thread Size M20x1,5
EAN 4657814483527

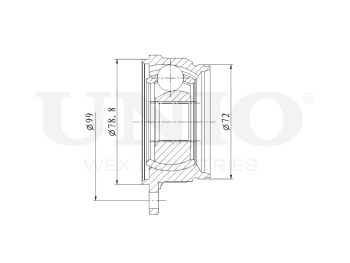

Inner CV joint Inner CV joint Mitsubishi L200 IV 05-, Pajero Sport III 00- Art: CVJ-30208

Article: CVJ-30208

Inner CV joint Inner CV joint Suzuki Grand Vitara (JT,TE,TD) 05-, Liana (ER) 01- Art: CVJ-30207

Article: CVJ-30207

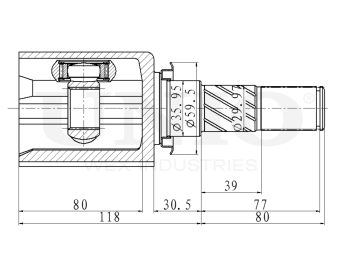

Inner CV joint Inner CV joint Haval H3 22- (4WD), Jolion 21- (4WD) Art: CVJ-30203

Article: CVJ-30203

Internal Toothing wheel side 24
Internal Toothing differential side, conn. to conn. shaft 24
External Toothing differential side 37
Sealing Ring Diameter [mm] 35.95
Length [mm] 198
Tripod roller diameter [mm] 41.55
Diameter 2 [mm] 81.8
EAN 4657844657288

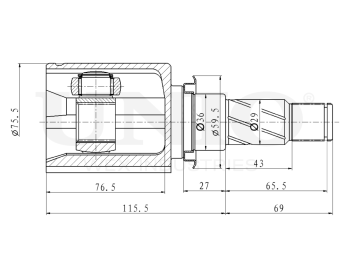

Inner CV joint Inner CV joint Haval F7 19- (4WD), F7x 19- (4WD) Art: CVJ-30204

Article: CVJ-30204

Internal Toothing wheel side 22
Internal Toothing differential side, conn. to conn. shaft 22
External Toothing differential side 22
Sealing Ring Diameter [mm] 36
Length [mm] 184.5
Tripod roller diameter [mm] 31.95
Diameter 2 [mm] 75.5
EAN 4657844657325

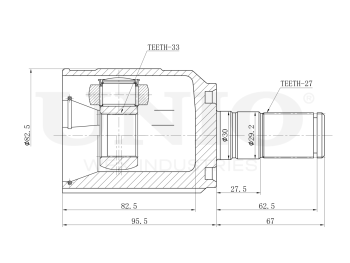

Inner CV joint Inner CV joint Hyundai Sonata VII,VIII 14-, Kia Optima III,IV 12- Art: CVJ-30209

Article: CVJ-30209

Internal Toothing wheel side 33
Internal Toothing differential side, conn. to conn. shaft 33
External Toothing differential side 27
Sealing Ring Diameter [mm] 30
Length [mm] 162.5
Tripod roller diameter [mm] 37.1
Diameter 2 [mm] 82.5
EAN 4657844657448

Inner CV joint Inner CV joint Opel Vectra A 89-, Calibra A 90-, Saab 900 (YS3D) 93- (MT) Art: CVJ-30033

Article: CVJ-30033

Fitting Position Front Axle Right
External Toothing differential side 34
Internal Toothing differential side, conn. to conn. shaft 25
Sealing Ring Diameter [mm] 35
Length [mm] 101
Diameter 2 [mm] 92
EAN 4657814487266

Inner CV joint Inner CV joint VW Passat B6 05-, Tiguan 07-, Golf V 04- (MT/AT) Art: CVJ-30052

Article: CVJ-30052

Fitting Position Front Axle
External Toothing differential side 26
Internal Toothing differential side, conn. to conn. shaft 34
Sealing Ring Diameter [mm] 31
Length [mm] 157
Diameter 2 [mm] 82.5
EAN 4657814487457

Inner CV joint Inner CV joint VW Sharan 97-, Audi A6 III 04-, A4 II,III 00- (MT/AT) Art: CVJ-30027

Article: CVJ-30027

Fitting Position Front Axle
Internal Toothing differential side, conn. to conn. shaft 34
Length [mm] 82
Diameter 2 [mm] 88
Tripod roller diameter [mm] 37.1
Number of bores 6
Bore Diameter [mm] 10.6
Bolt Hole Circle Ø [mm] 104
EAN 4657814487204

Inner CV joint Inner CV joint VW Tiguan II 16-, Skoda Octavia (1U,5E,1Z,NX) 96-, Audi A3 I,III 96- (MT/AT) Art: CVJ-30005

Article: CVJ-30005

Fitting Position Front Axle
Internal Toothing differential side, conn. to conn. shaft 33
Length [mm] 32
Diameter 2 [mm] 94
EAN 4657814486986

Inner CV joint Inner CV joint Nissan Note (E11) 05-, Micra (K12) 02- (MT/AT) Art: CVJ-30142

Article: CVJ-30142

Fitting Position Front Axle Left
External Toothing differential side 26
Internal Toothing differential side, conn. to conn. shaft 21
Sealing Ring Diameter [mm] 40
Length [mm] 160
Diameter 2 [mm] 72
EAN 4657814488355

Inner CV joint Inner CV joint Ford Mondeo II,III 96- (MT/AT) Art: CVJ-30115

Article: CVJ-30115

Fitting Position Front Axle Left
External Toothing differential side 26
Internal Toothing differential side, conn. to conn. shaft 33
Sealing Ring Diameter [mm] 40
Length [mm] 168.5
Diameter 2 [mm] 90
EAN 4657814488089

Inner CV joint Inner CV joint VW Polo IV,V 06-, Skoda Rapid (NH1,NH3) 12-, Fabia (5J,NJ) 07- (MT/AT) Art: CVJ-30001

Article: CVJ-30001

Fitting Position Front Axle
External Toothing differential side 26
Internal Toothing differential side, conn. to conn. shaft 22
Sealing Ring Diameter [mm] 31
Length [mm] 157
Diameter 2 [mm] 77
EAN 4657814486948

Drivetrain Components - page 15
